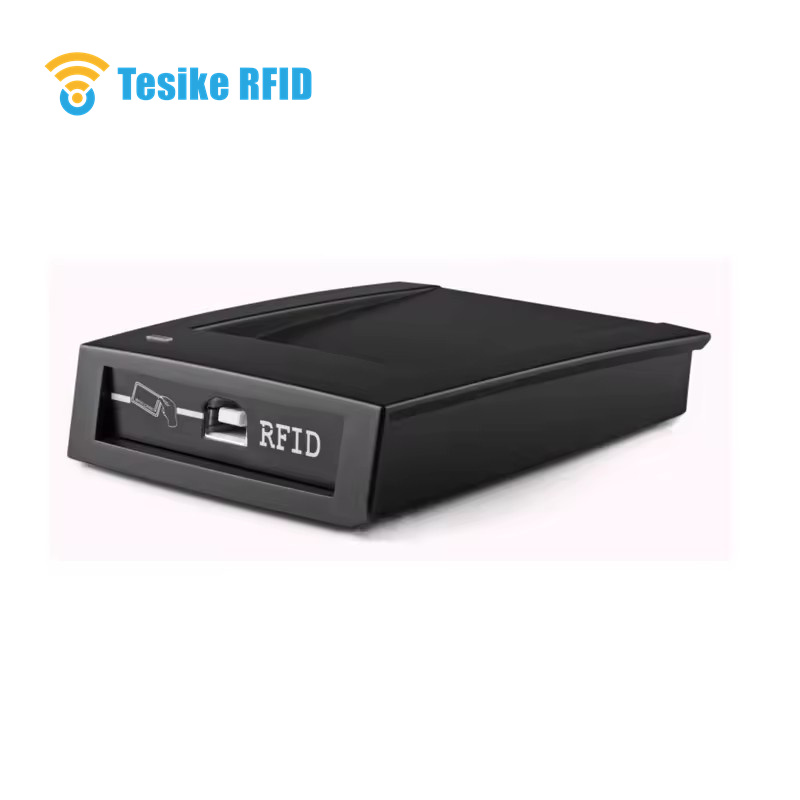

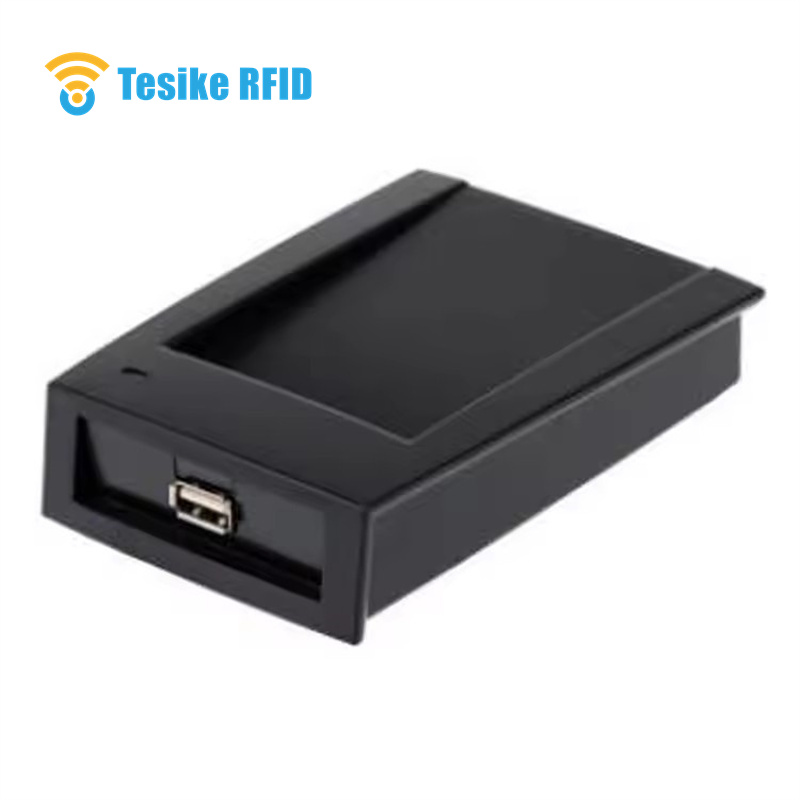

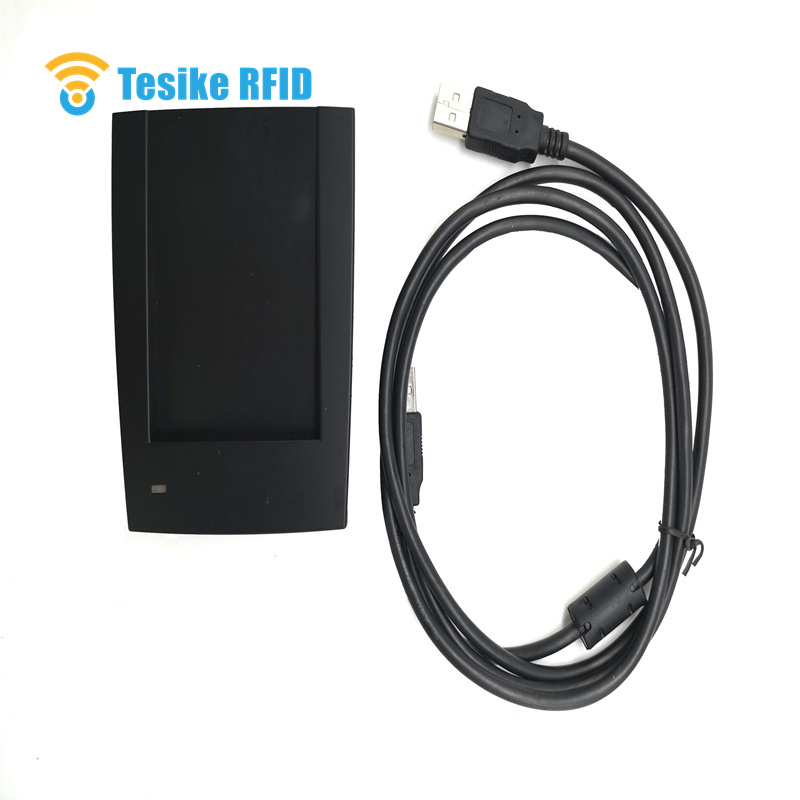

TSK581 Type is a 134.2kHZ desktop card reader with a USB interface. It can be directly connected to the computer through the USB data cable. It can be directly connected to the computer. After reading the card, you can directly output the 15-digit ID number to any computer interface. Click on the cursor). The card reader conforms to ISO11784, 11785 protocol, can read 134.2KHZ electronic ear tag and biochip , read EM4305 chip ear tag distance is about 5CM, read biochip distance is about 2-3CM (depending on chip size).
The card reader can also access the intelligent terminal with the OTG function through the USB data line, and the card can directly display the data in the arbitrary software (cursor click) interface of the mobile terminal.
Two: product advantage
1: Can read 134.2kHZ FDX format, can also read HDX format.
2: Analog keyboard output, directly output 15 code ID to any software interface after reading the card
3: Can be customized in different shapes, OEM, super cost performance
4: No external power supply is required, and the power is taken directly from the terminal through the data cable (computer or mobile phone)
Three: technical parameters
Model: TSK581
Frequency: 134.2KHz
Data interface: USB interface
Reading distance: 3-7cm (depending on the label)
Power interface: USB
Compatible format: 134.2KHZ, EM format (FDX HDX)
Operating temperature: 0~50°C
Compatible chips: EM4005, SMC4005, EM4305 and other ISO11784/11785 protocol chips Indicator status: Induction successful red LED is on for 0.4 seconds, the sounder sounds once
Size: length 7.5CM width 11CM
